NÜRAL Piston buy cheap at Rexbo
Piston with cooling duct, with piston ring carrier, for keystone connecting rod NÜRAL 4044197917020

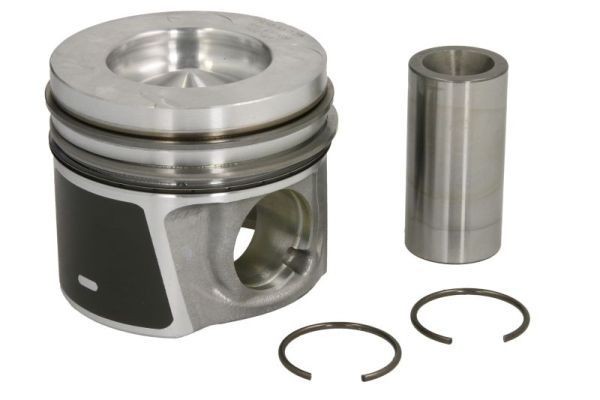

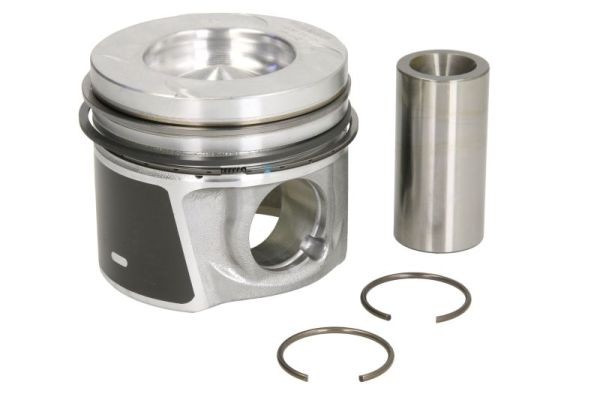

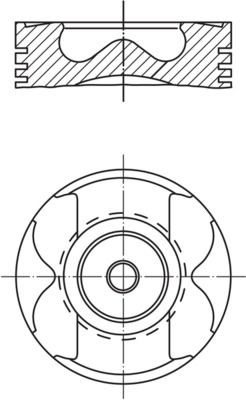

NÜRAL 87-443100-00 Piston with cooling duct, with piston ring carrier, for keystone connecting rod
Article number: 87-443100-00

Piston 4044197917020: rating
Reviews (0)
  • Production Number: 0850H-228
  • Supplementary Article / Supplementary Info Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod
  • Recess Depth 1 [mm]: 13,71
  • Compression Height [mm]: 46,71
  • Height [mm]: 74,7
  • Cylinder Bore [mm]: 85
  • Bolt Head Diameter [mm]: 30
  • Recess Diameter [mm]: 50,4
  • Bolt Length [mm]: 68
  • Valve Pocket Depth 1 [mm]: 0,46
  • Component Number: 08-443100-00
  • Machined: with cut-out for oil jet
  • Standard Size [STD]:
  • Piston Chamber Volume [cm³]: 26,32
  • Piston Clearance [mm]: 0,544
  • Condition: New
£ 121,79
incl. 20% VAT ,
delivery costs
In stock
- +
Add to basket
Facebook
Product details
  • Length [mm]: 74.705
  • Valve pocket depth 1 [mm]: 0.455
  • Compression Height [mm]: 46.705
  • Cylinder Bore [mm]: 85
  • Other details
  • Manufacturer: NÜRAL
  • Type: Piston
  • EAN: 4044197917020
NÜRAL 4044197917020

NÜRAL Piston 4044197917020 fits the following vehicles:

Manufacturer/Model/Type Year of Construction Motor Engine code Restriction
CITROËN C4 Grand Picasso I (UA_) 2.0 HDi 07.2009 - 08.2013 110KW/150PS RHE (DW10CTED4)
CITROËN C4 Grand Picasso I (UA_) 2.0 HDi 09.2010 - 08.2013 120KW/163PS RHH (DW10CTED4)
CITROËN C4 Grand Picasso II 2.0 BlueHDi 09.2013 - ... 100KW/136PS RHD (DW10CB)
CITROËN C4 II (B7) 2.0 HDi / BlueHDi 11.2009 - ... 110KW/150PS AHR (DW10FD)
CITROËN C4 II (B7) 2.0 HDi / BlueHDi 10.2010 - ... 120KW/163PS RHH (DW10CTED4)
CITROËN C4 Picasso I (UD_) 2.0 HDi 07.2009 - 08.2013 110KW/150PS RHE (DW10CTED4)
CITROËN C4 Picasso I (UD_) 2.0 HDi 09.2010 - 08.2013 120KW/163PS RHH (DW10CTED4)
CITROËN C4 Picasso II 2.0 BlueHDi 09.2013 - ... 100KW/136PS RHD (DW10CB)
CITROËN C5 III (RD_) 2.0 HDi 04.2009 - 07.2016 120KW/163PS RHH (DW10CTED4)
CITROËN C5 III (RD_) 2.0 HDi (RDRHDA) 02.2008 - 06.2014 100KW/136PS RHR (DW10BTED4)
CITROËN C5 III (RD_) 2.0 HDi / BlueHDi (RDRHEA, RDRHE8) 04.2009 - 02.2015 110KW/150PS AHR (DW10FD)
CITROËN C5 III Estate (RW_) 2.0 HDi 02.2008 - 06.2014 100KW/136PS RHR (DW10BTED4)
CITROËN C5 III Estate (RW_) 2.0 HDi 04.2009 - 07.2016 120KW/163PS RHH (DW10CTED4)
CITROËN C5 III Estate (RW_) 2.0 HDi / BlueHDi (RWRHEJ, RWRHE8) 04.2009 - 02.2015 110KW/150PS AHR (DW10FD)
CITROËN C8 II 2.0 HDi 03.2006 - ... 100KW/136PS RHD (DW10CB)
CITROËN C8 II 2.0 HDi 03.2006 - ... 120KW/163PS RHH (DW10CTED4)
CITROËN DS4 2.0 HDi 04.2011 - 07.2015 120KW/163PS RHH (DW10CTED4)
CITROËN DS4 2.0 HDi / BlueHDi 09.2011 - 07.2015 100KW/136PS RHD (DW10CB)
CITROËN DS5 2.0 HDi 11.2011 - 07.2015 100KW/136PS RHD (DW10CB)
CITROËN DS5 2.0 HDi 11.2011 - 07.2015 120KW/163PS RHH (DW10CTED4)
CITROËN JUMPY Box 2.0 HDi 07.2010 - 03.2016 120KW/163PS RHH (DW10CTED4)
CITROËN Jumpy MPV (VF7) 2.0 HDi 07.2010 - 03.2016 120KW/163PS RHH (DW10CTED4)
FIAT Scudo (270_, 272_) 2.0 D Multijet 04.2011 - 03.2016 94KW/128PS RH02
FIAT Scudo (270_, 272_) 2.0 D Multijet 07.2010 - 03.2016 120KW/163PS RH02
FIAT Scudo (270_, 272_) 2.0 D Multijet 4x4 04.2011 - 03.2016 94KW/128PS RH02
FIAT Scudo Platform / Chassis (270_, 272_) 2.0 D Multijet 05.2011 - 03.2016 94KW/128PS RH02
FIAT Scudo Platform / Chassis (270_, 272_) 2.0 D Multijet 07.2010 - 03.2016 120KW/163PS RH02
FIAT Scudo Van (270_, 272_) 2.0 D Multijet 05.2011 - 03.2016 94KW/128PS RH02
FIAT Scudo Van (270_, 272_) 2.0 D Multijet 07.2010 - 03.2016 120KW/163PS RH02
FIAT Scudo Van (270_, 272_) 2.0 D Multijet 4x4 05.2011 - 03.2016 94KW/128PS RH02
PEUGEOT 3008 (0U_) 2.0 HDi 09.2011 - 08.2016 100KW/136PS RHD (DW10CB)
PEUGEOT 3008 (0U_) 2.0 HDi 06.2009 - 08.2016 120KW/163PS RHH (DW10CTED4)
PEUGEOT 3008 (0U_) 2.0 HDi / BlueHDi 06.2009 - 08.2016 110KW/150PS RHE (DW10CTED4)
PEUGEOT 3008 (T8) HDi (0URHEM) 06.2009 - 08.2016 110KW/150PS RHE (DW10CTED4)
PEUGEOT 3008 (T8) HDi (0URHHT) 06.2009 - 08.2016 120KW/163PS RHH (DW10CTED4)
PEUGEOT 308 CC (4B_) 2.0 HDi 06.2009 - 12.2014 120KW/163PS RHH (DW10CTED4)
PEUGEOT 308 I Hatchback (4A_, 4C_) 2.0 HDi 10.2011 - 10.2014 110KW/150PS RHE (DW10CTED4)
PEUGEOT 308 I Hatchback (4A_, 4C_) 2.0 HDi 04.2012 - 10.2014 120KW/163PS RHH (DW10CTED4)
PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi 04.2011 - 10.2014 110KW/150PS RHE (DW10CTED4)
PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi 06.2009 - 10.2014 120KW/163PS RHH (DW10CTED4)
PEUGEOT 407 (6D_) 2.0 HDi (6DRHHA) 06.2009 - 12.2010 120KW/163PS RHH (DW10CTED4)
PEUGEOT 407 Coupe (6C_) 2.0 HDi 06.2009 - ... 120KW/163PS RHH (DW10CTED4)
PEUGEOT 407 SW (6E_) 2.0 HDi 06.2009 - 12.2010 120KW/163PS RHH (DW10CTED4)
PEUGEOT 407 SW Box Body / Estate (6E_) 2.0 HDi 06.2009 - 12.2010 120KW/163PS RHH (DW10CTED4)
PEUGEOT 5008 (0U_, 0E_) 2.0 HDi 09.2009 - 03.2017 120KW/163PS RHH (DW10CTED4)
PEUGEOT 5008 (0U_, 0E_) 2.0 HDi / BlueHDi 02.2012 - 03.2017 100KW/136PS RHD (DW10CB)
PEUGEOT 5008 (0U_, 0E_) 2.0 HDi / BlueHDi 06.2009 - 03.2017 110KW/150PS RHE (DW10CTED4)
PEUGEOT 508 I (8D_) Saloon 2.0 HDi 11.2010 - 12.2018 103KW/140PS RHF (DW10BTED4)
PEUGEOT 508 I (8D_) Saloon 2.0 HDi 11.2010 - 12.2018 120KW/163PS RHH (DW10CTED4)
PEUGEOT 508 I SW Box Body / Estate (8E_) 2.0 HDi 03.2013 - 12.2018 120KW/163PS RHH (DW10CTED4)
PEUGEOT 508 SW I (8E_) 2.0 HDi 11.2010 - 12.2018 103KW/140PS RHF (DW10BTED4)
PEUGEOT 508 SW I (8E_) 2.0 HDi 11.2010 - 12.2018 120KW/163PS RHH (DW10CTED4)
PEUGEOT 807 MPV 2.0 HDI 06.2006 - ... 100KW/136PS RHR (DW10BTED4)
PEUGEOT 807 MPV 2.0 HDi 06.2009 - ... 120KW/163PS RHH (DW10CTED4)
PEUGEOT EXPERT Box (VF3A_, VF3U_, VF3X_) 2.0 HDi 09.2009 - ... 120KW/163PS RHH (DW10CTED4)
PEUGEOT EXPERT Platform/Chassis 2.0 HDi 09.2009 - ... 120KW/163PS RHH (DW10CTED4)
PEUGEOT Expert Tepee (VF3X_) 2.0 HDi 09.2009 - ... 120KW/163PS RHH (DW10CTED4)
PEUGEOT RCZ Coupe 2.0 HDi 03.2010 - 12.2015 120KW/163PS RHH (DW10CTED4)
DS DS 5 Hatchback HDi 165 06.2017 - 12.2018 120KW/163PS RHH (DW10CTED4)
OEM numbers
Reference number(s) OEM:
Manufacturer OE number
CITROËN / PEUGEOT 0628X1
CITROËN / PEUGEOT 9676627180
The following products are also suitable for the specified OE-number:
Piston manufacturer
NÜRAL 87-443100-00
KOLBENSCHMIDT 41251600
ET ENGINETEAM PM010500
MAHLE ORIGINAL 039 PI 00117 000
FAST FT47140/0
FAST FT47140/4
ENGITECH ENT050701 STD
