  2. Piston car
  3. Piston with piston ring carrier, with cooling duct, for keystone connecting rod
NE Piston buy cheap at Rexbo

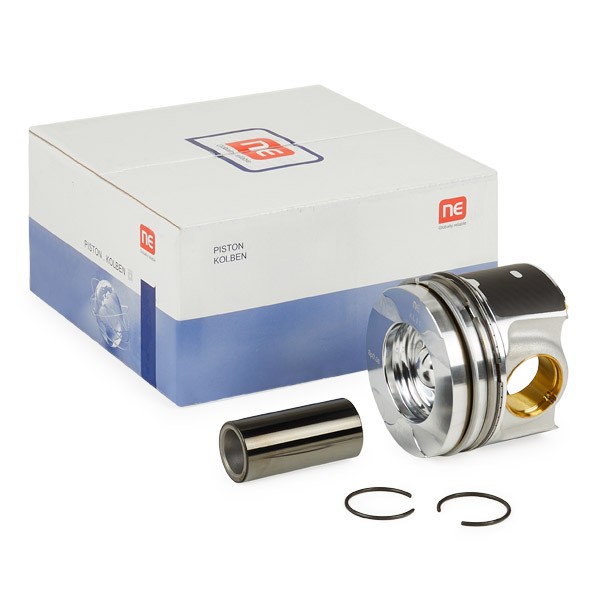

Piston with piston ring carrier, with cooling duct, for keystone connecting rod NE 4062086150266

NE 130037003100 Piston with piston ring carrier, with cooling duct, for keystone connecting rod
Article number: 130037003100

Piston 4062086150266: rating
Reviews (0)
  • Supplementary Article / Supplementary Info Info 2: with piston ring carrier, with cooling duct, for keystone connecting rod
  • Recess Depth 1 [mm]: 13,20
  • Compression Height [mm]: 41,70
  • Bolt Head Diameter [mm]: 26
  • Bolt Length [mm]: 61
  • Valve Pocket Depth 1 [mm]: 1,16
  • Standard Size [STD]:
  • Bore Diameter [mm]: 75,00
  • Length [mm]: 65,30
  • Condition: New
£ 112,92
incl. 20% VAT ,
delivery costs
In stock
- +
Add to basket
Facebook
  • Other details
  • Manufacturer: NE
  • Type: Piston
  • EAN: 4062086150266
NE 4062086150266

NE Piston 4062086150266 fits the following vehicles:

Manufacturer/Model/Type Year of Construction Motor Engine code Restriction
CITROËN BERLINGO (B9) 1.6 HDi 04.2008 - ... 66KW/90PS 9HX (DV6ATED4)
CITROËN BERLINGO (B9) 1.6 HDi 04.2008 - ... 80KW/109PS 9HZ (DV6TED4)
CITROËN Berlingo / Berlingo First (MF, GJK, GFK) 1.6 HDI 07.2005 - 05.2008 66KW/90PS 9HX (DV6ATED4)
CITROËN Berlingo / Berlingo First Van (M_) 1.6 HDI 07.2005 - 12.2011 66KW/90PS 9HX (DV6ATED4)
CITROËN BERLINGO Box (B9) 1.6 HDi 04.2008 - ... 80KW/109PS 9HZ (DV6TED4)
CITROËN BERLINGO Box (B9) 1.6 HDi 16V 04.2008 - ... 66KW/90PS 9HX (DV6AUTED4)
CITROËN BERLINGO Platform/Chassis (B9) 1.6 HDi 16V 04.2008 - ... 66KW/90PS 9HX (DV6ATED4)
CITROËN C2 Hatchback (JM) 1.6 HDi 09.2005 - 12.2009 80KW/109PS 9HZ (DV6TED4)
CITROËN C3 I Hatchback (FC_, FN_) 1.6 16V HDi 10.2005 - 12.2009 66KW/90PS 9HX (DV6ATED4)
CITROËN C3 I Hatchback (FC_, FN_) 1.6 16V HDi 09.2005 - 12.2009 80KW/109PS 9HZ (DV6TED4)
CITROËN C3 II (SC_) 1.6 HDi 11.2009 - 09.2016 66KW/90PS 9HX (DV6ATED4)
CITROËN C3 Picasso 1.6 HDi 02.2009 - 03.2015 66KW/90PS 9HX (DV6ATED4)
CITROËN C3 Picasso 1.6 HDi 02.2009 - 12.2010 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 Coupe (LA_) 1.6 HDi 11.2004 - 07.2011 66KW/90PS 9HX (DV6ATED4)
CITROËN C4 Coupe (LA_) 1.6 HDi 11.2004 - 07.2011 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 Grand Picasso I (UA_) 1.6 HDi 10.2006 - 06.2011 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 I (LC_) 1.6 HDi 11.2004 - 07.2011 66KW/90PS 9HX (DV6ATED4)
CITROËN C4 I (LC_) 1.6 HDi 11.2004 - 07.2011 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 Picasso I (UD_) 1.6 HDi 02.2007 - 08.2013 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 Saloon L 1.6 HDi 07.2006 - 07.2011 80KW/109PS 9HZ (DV6TED4)
CITROËN C5 II (RC_) 1.6 HDi (RC8HZB) 09.2004 - 01.2008 80KW/109PS 9HZ (DV6TED4)
CITROËN C5 II Break (RE_) 1.6 HDi (RE9HZC, RE9HYB) 09.2004 - 01.2008 80KW/109PS 9HZ (DV6TED4)
CITROËN C5 III (RD_) 1.6 HDi 02.2008 - 10.2010 80KW/109PS 9HZ (DV6TED4)
CITROËN C5 III Estate (RW_) 1.6 HDi 02.2008 - 10.2010 80KW/109PS 9HZ (DV6TED4)
CITROËN XSARA PICASSO (N68) 1.6 HDi 09.2005 - 12.2011 66KW/90PS 9HX (DV6ATED4)
CITROËN XSARA PICASSO (N68) 1.6 HDi 05.2004 - 12.2011 80KW/109PS 9HZ (DV6TED4)
FORD C-MAX (DM2) 1.6 TDCi 02.2007 - 09.2010 80KW/109PS G8DA
FORD Focus C-Max (DM2) 1.6 TDCi 02.2005 - 03.2007 66KW/90PS HHDA
FORD Focus C-Max (DM2) 1.6 TDCi 10.2003 - 03.2007 80KW/109PS G8DA
FORD Focus II Estate (DA_, FFS, DS) 1.6 TDCi 12.2007 - 09.2012 81KW/110PS G8DA
FORD Focus II Saloon (DB_, FCH, DH) 1.6 TDCi 04.2005 - 09.2012 66KW/90PS GPDB
MAZDA 3 (BK) 1.6 DI Turbo 06.2004 - 06.2009 80KW/109PS Y601
MAZDA 3 (BL) 1.6 MZ-CD (BL14) 12.2008 - 05.2013 80KW/109PS Y642
MAZDA 3 Saloon (BK) 1.6 DI Turbo (BK12Y) 06.2004 - 06.2009 80KW/109PS Y601
MAZDA 3 Saloon (BL) 1.6 MZR CD (BL12) 12.2008 - 05.2013 80KW/109PS Y642
PEUGEOT 1007 (KM_) 1.6 HDi 06.2007 - ... 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 206 CC (2D) 1.6 HDi 04.2005 - 02.2007 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 206 Hatchback (2A/C) 1.6 HDi 05.2004 - 02.2007 80KW/109PS 9HY (DV6TED4)
PEUGEOT 206 SW (2E/K) 1.6 HDi 05.2004 - ... 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 207 (WA_, WC_) 1.6 HDi 02.2006 - 10.2013 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 207 (WA_, WC_) 1.6 HDi 02.2006 - 10.2013 80KW/109PS 9HY (DV6TED4)
PEUGEOT 207 CC (WD_) 1.6 HDi 02.2007 - 01.2015 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 207 SW (WK_) 1.6 HDi 06.2007 - 12.2012 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 207 SW (WK_) 1.6 HDi 06.2007 - 12.2012 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 3008 (0U_) 1.6 HDi 06.2009 - 08.2016 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 307 (3A/C) 1.6 HDi 04.2005 - 03.2009 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 307 (3A/C) 1.6 HDi 02.2004 - 03.2009 80KW/109PS 9HY (DV6TED4)
PEUGEOT 307 Break (3E) 1.6 HDi 04.2005 - 04.2008 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 307 Break (3E) 1.6 HDi 02.2004 - 04.2008 80KW/109PS 9HY (DV6TED4)
PEUGEOT 307 SW (3H) 1.6 HDI 04.2005 - 04.2008 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 307 SW (3H) 1.6 HDI 11.2003 - 12.2007 80KW/109PS 9HY (DV6TED4)
PEUGEOT 308 I Hatchback (4A_, 4C_) 1.6 HDi 09.2007 - 10.2014 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 308 I Hatchback (4A_, 4C_) 1.6 HDi 09.2007 - 10.2014 80KW/109PS 9HY (DV6TED4)
PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi 09.2007 - 10.2014 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi 09.2007 - 10.2014 80KW/109PS 9HY (DV6TED4)
PEUGEOT 407 (6D_) 1.6 HDi (6D9HZC, 6D9HYC) 05.2004 - 12.2010 80KW/109PS 9HY (DV6TED4)
PEUGEOT 407 SW (6E_) 1.6 HDi 05.2004 - 12.2010 80KW/109PS 9HY (DV6TED4)
PEUGEOT 5008 (0U_, 0E_) 1.6 HDi 09.2009 - 03.2017 80KW/110PS 9HZ (DV6TED4)
PEUGEOT PARTNER Box 1.6 HDi 04.2008 - ... 80KW/109PS 9HZ (DV6TED4)
PEUGEOT PARTNER Box 1.6 HDi 16V 04.2008 - ... 66KW/90PS 9HS (DV6TED4BU)
PEUGEOT PARTNER Box 1.6 HDi 16V 04.2010 - ... 68KW/92PS 9HX (DV6ATED4)
PEUGEOT PARTNER Box 1.6 HDi 16V 4x4 04.2012 - ... 66KW/90PS 9HX (DV6ATED4)
PEUGEOT PARTNER Box (5) 1.6 HDi 08.2005 - 12.2015 66KW/90PS 9HX (DV6ATED4)
PEUGEOT PARTNER Combispace (5F) 1.6 HDi 08.2005 - 12.2015 66KW/90PS 9HX (DV6ATED4)
PEUGEOT PARTNER Platform/Chassis 1.6 HDi 16V 01.2009 - ... 66KW/90PS 9HS (DV6TED4BU)
PEUGEOT PARTNER Tepee 1.6 HDi 04.2008 - ... 80KW/109PS 9HZ (DV6TED4)
PEUGEOT PARTNER Tepee 1.6 HDi 16V 04.2008 - ... 66KW/90PS 9HV (DV6TED4B)
SUZUKI SX4 (EY, GY) 1.6 DDIS (RW 416D) 04.2007 - ... 66KW/90PS 9HX
MINI Clubman (R55) Cooper D 10.2007 - 02.2010 80KW/109PS 9HZ (DV6TED4)
MINI Hatchback (R56) Cooper D 11.2006 - 09.2010 80KW/109PS 9HZ (DV6TED4)
MINI Hatchback (R56) One D 06.2009 - 07.2010 66KW/90PS 9HZ (DV6TED4)
OEM numbers
Reference number(s) OEM:
Manufacturer OE number
CITROËN / PEUGEOT 0628V1
MAZDA Y60111100
MINI 11257806772
The following products are also suitable for the specified OE-number:
Piston manufacturer
MAHLE ORIGINAL 040 06 00
KOLBENSCHMIDT 40179600
IPSA PI000500
NE 7137585000
ENGITECH ENT050704 STD
NE 130037003100
NE 130037003121
