MAHLE ORIGINAL Piston buy cheap at Rexbo
Piston with piston ring carrier, without cooling duct MAHLE ORIGINAL 4009026717851
MAHLE ORIGINAL Piston 022 01 00 buy popular items
Piston MAHLE ORIGINAL 022 01 00 buy cheap

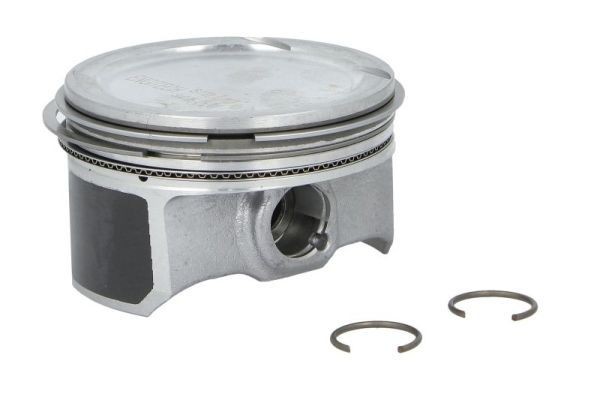

MAHLE ORIGINAL 022 01 00 Piston with piston ring carrier, without cooling duct
Article number: 022 01 00

Piston 4009026717851: rating
Reviews (0)
  • Standard Size [STD]:
  • Cylinder Bore [mm]: 76,0
  • Length [mm]: 66,0
  • Compression Height [mm]: 41,8
  • Bolt Length [mm]: 60,0
  • Bolt Head Diameter [mm]: 26,0
  • Recess Depth 1 [mm]: 14,0
  • Recess Diameter [mm]: 39,65
  • Valve Pocket Depth 1 [mm]: 0,25
  • Valve Pocket Depth 2 [mm]: 0,4
  • Machined: with cut-out for oil jet
  • Surface: Coated
  • Supplementary Article / Supplementary Info Info 2: with piston ring carrier, without cooling duct
  • Top Land Height [mm]: 9
  • Connecting Rod Design: Trapezoidal Connecting Rod
  • Production Number: 76 L 114
  • Component Number: 1. R2.0 IF CrK, 2. M 2.0 IFU, 3. DSF 2.5 N
  • Engine Number from: 021125-091025
  • Piston Clearance [mm]: 0,06
  • Packaging height [cm]: 12,80
  • Net Weight [g]: 629
  • Packaging length [cm]: 9,5
  • Packaging width [cm]: 9,50
  • Condition: New
£ 68,35
incl. 20% VAT ,
delivery costs
In stock
- +
Add to basket
Facebook
Product details
  • Recess Depth 1 [mm]: 14
  • Surface: Coated
  • Valve Pocket Depth 2 [mm]: 0,4
  • Valve Pocket Depth 1 [mm]: 0,25
  • Supplementary Article/Supplementary Info: with piston rings
  • Engine Number from: 021125-091025
  • Engine Code: K9K 750
  • Other details
  • Manufacturer: MAHLE ORIGINAL
  • Type: Piston
  • EAN: 4009026717851
MAHLE ORIGINAL 4009026717851

MAHLE ORIGINAL Piston 4009026717851 fits the following vehicles:

Manufacturer/Model/Type Year of Construction Motor Engine code Restriction
NISSAN ALMERA II Hatchback (N16) 1.5 dCi 01.2003 - 09.2006 60KW/82PS K9K 722
NISSAN Almera II Saloon (N16) 1.5 dCi 01.2003 - 09.2006 60KW/82PS K9K 722
NISSAN CUBE (Z12) 1.5 dCi 10.2009 - ... 78KW/106PS K9K 270
NISSAN CUBE (Z12) 1.5 dCi 03.2010 - ... 81KW/110PS K9K 270
NISSAN KIcks (P16) 1.5 D 01.2019 - 05.2020 81KW/110PS K9K
NISSAN Kubistar Van (X76) 1.5 dCi 08.2003 - 10.2009 42KW/57PS K9K 710
NISSAN Kubistar Van (X76) 1.5 dCi 08.2005 - 10.2009 45KW/61PS K9K 710
NISSAN Kubistar Van (X76) 1.5 dCi 08.2003 - ... 48KW/65PS K9K 704
NISSAN Kubistar Van (X76) 1.5 dCi 08.2003 - 10.2009 60KW/82PS K9K 722
NISSAN Kubistar Van (X76) 1.5 dCi 70 09.2005 - 10.2009 50KW/68PS K9K 716
NISSAN Kubistar Van (X76) dCi 85 04.2006 - 10.2009 62KW/84PS K9K 276
NISSAN MICRA III (K12) 1.5 dCi 01.2003 - 06.2010 48KW/65PS K9K 704
NISSAN MICRA III (K12) 1.5 dCi 06.2005 - 06.2010 50KW/68PS K9K 708
NISSAN MICRA III (K12) 1.5 dCi 09.2003 - 06.2010 60KW/82PS K9K 722
NISSAN MICRA III (K12) 1.5 dCi 06.2005 - 06.2010 63KW/86PS K9K 276
NISSAN MICRA IV (K13) 1.5 D 11.2010 - 05.2020 47KW/64PS K9K 700
NISSAN Note (E11, NE11) 1.5 dCi 03.2006 - 06.2012 50KW/68PS K9K 700
NISSAN Note (E11, NE11) 1.5 dCi 03.2006 - 06.2012 63KW/86PS K9K 400
NISSAN Note (E11, NE11) 1.5 dCi 09.2010 - 06.2012 66KW/90PS K9K 400
NISSAN PULSAR Hatchback (C13) 1.5 dCi 10.2014 - ... 81KW/110PS K9K
NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.5 dCi 08.2008 - 01.2010 76KW/103PS K9K 292
NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.5 dCi 11.2006 - 11.2013 78KW/106PS K9K 292
NISSAN Qashqai / Qashqai+2 I Van (J10, JJ10E) 1.5 dCi 03.2013 - 04.2014 81KW/110PS K9K
NISSAN TIIDA Hatchback 1.5 dCi 03.2007 - 06.2013 76KW/103PS K9K
NISSAN TIIDA Hatchback 1.5 dCi 09.2007 - 12.2011 78KW/106PS K9K
NISSAN TIIDA Saloon (SC11X) 1.5 dCi 01.2007 - 12.2012 76KW/103PS K9K
NISSAN TIIDA Saloon (SC11X) 1.5 dCi 09.2007 - 12.2012 78KW/106PS K9K
RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi 11.2007 - 12.2012 48KW/65PS K9K 752
RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi (KR0G) 11.2007 - 12.2012 50KW/68PS K9K 714
RENAULT CLIO II (BB0/1/2_, CB0/1/2_) 1.5 dCi 06.2001 - 12.2006 42KW/57PS K9K 704
RENAULT CLIO II (BB0/1/2_, CB0/1/2_) 1.5 dCi 10.2003 - 04.2005 74KW/100PS K9K 712
RENAULT CLIO II (BB0/1/2_, CB0/1/2_) 1.5 dCi (B/C2J) 08.2004 - 12.2012 50KW/68PS K9K 714
RENAULT CLIO II (BB0/1/2_, CB0/1/2_) 1.5 dCi (B/CB03) 06.2001 - 10.2003 59KW/80PS K9K 702
RENAULT CLIO II (BB0/1/2_, CB0/1/2_) 1.5 dCi (B/CB07) 06.2001 - 07.2009 48KW/65PS K9K 704
RENAULT CLIO II (BB0/1/2_, CB0/1/2_) 1.5 dCi (B/CB08) 06.2001 - 04.2005 60KW/82PS K9K 702
RENAULT CLIO II (BB0/1/2_, CB0/1/2_) 1.5 dCi (B/CB3M) 06.2005 - 12.2010 47KW/64PS K9K 740
RENAULT CLIO II Box (SB0/1/2_) 1.5 dCi 04.2004 - ... 50KW/68PS K9K 714
RENAULT CLIO II Box (SB0/1/2_) 1.5 dCi 06.2001 - 10.2004 59KW/80PS K9K 702
RENAULT CLIO II Box (SB0/1/2_) 1.5 dCi 11.2003 - ... 60KW/82PS K9K 710
RENAULT CLIO II Box (SB0/1/2_) 1.5 dCi (SB07) 06.2001 - ... 48KW/65PS K9K 704
RENAULT CLIO II Box (SB0/1/2_) 1.5 dCi (SB3M) 06.2005 - 12.2010 47KW/64PS K9K 740
RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi 06.2005 - 12.2012 47KW/64PS K9K 752
RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi 05.2005 - 07.2010 48KW/65PS K9K 752
RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi 11.2007 - 12.2012 60KW/82PS K9K 750
RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi (C/BR0G, C/BR1G) 06.2005 - 12.2012 50KW/68PS K9K 714
RENAULT Clio III Van (SB_, SR_) 1.5 dCi 10.2005 - 07.2010 50KW/68PS K9K 768
RENAULT Duster (HS_) 1.5 dCi 02.2012 - ... 63KW/85PS K9K 796
RENAULT KANGOO (KC0/1_) 1.5 dCi 07.2003 - ... 42KW/57PS K9K 704
RENAULT KANGOO (KC0/1_) 1.5 dCi 04.2005 - 06.2010 45KW/61PS K9K 702
RENAULT KANGOO (KC0/1_) 1.5 dCi 06.2005 - ... 50KW/68PS K9K 714
RENAULT KANGOO (KC0/1_) 1.5 dCi (KC07) 12.2001 - ... 48KW/65PS K9K 704
RENAULT KANGOO (KC0/1_) 1.5 dCi (KC08, KC09) 07.2002 - ... 60KW/82PS K9K 710
RENAULT KANGOO BE BOP (KW0/1_) 1.5 dCi 11.2013 - 08.2013 47KW/64PS K9K 714
RENAULT KANGOO Express (FC0/1_) 1.5 dCi 10.2005 - ... 45KW/61PS K9K 716
RENAULT KANGOO Express (FC0/1_) 1.5 dCi (FC07, FC1R) 12.2001 - ... 48KW/65PS K9K 704
RENAULT KANGOO Express (FC0/1_) 1.5 dCi (FC08, FC09) 04.2003 - ... 60KW/82PS K9K 710
RENAULT KANGOO Express (FC0/1_) 1.5 dCi (FC1E) 06.2005 - ... 50KW/68PS K9K 714
RENAULT KANGOO Express (FC0/1_) 1.5 dCi (FC1R) 12.2002 - ... 42KW/57PS K9K 704
RENAULT KANGOO Express (FW0/1_) 1.5 dCi 05.2008 - 01.2014 47KW/64PS K9K 700
RENAULT Logan Express (US_) 1.5 dCi 04.2007 - ... 50KW/68PS K9K 792
RENAULT LOGAN I (LS_) 1.5 dCi 04.2006 - 10.2013 48KW/65PS K9K 794
RENAULT LOGAN I (LS_) 1.5 dCi 04.2007 - ... 50KW/68PS K9K 792
RENAULT LOGAN I (LS_) 1.5 dCi 02.2008 - 06.2015 63KW/86PS K9K 796
RENAULT LOGAN I Estate (KS_) 1.5 dCi 04.2007 - ... 50KW/68PS K9K 792
RENAULT LOGAN I Estate (KS_) 1.5 dCi 02.2008 - 06.2015 63KW/86PS K9K 796
RENAULT MEGANE II (BM0/1_, CM0/1_) 1.5 dCi (BM0F, BM0T, BM2B, CM0F, CM0T) 09.2002 - 02.2008 60KW/82PS K9K 722
RENAULT MEGANE II (BM0/1_, CM0/1_) 1.5 dCi (BM1F, CM1F) 05.2005 - 02.2008 63KW/86PS K9K 724
RENAULT MEGANE II Box Body / Estate (KM_) 1.5 dCi (KM0F) 08.2003 - 07.2009 60KW/82PS K9K 722
RENAULT MEGANE II Box Body / Estate (KM_) 1.5 dCi (KM1F) 05.2005 - 07.2009 63KW/86PS K9K 724
RENAULT Megane II Box Body / Hatchback (KM0/2_) 1.5 dCi 08.2003 - 02.2008 60KW/82PS K9K 722
RENAULT Megane II Box Body / Hatchback (KM0/2_) 1.5 dCi 04.2005 - 02.2008 63KW/86PS K9K 724
RENAULT MEGANE II Estate (KM0/1_) 1.5 dCi (KM0F, KM0T, KM2B) 08.2003 - 05.2006 60KW/82PS K9K 722
RENAULT MEGANE II Estate (KM0/1_) 1.5 dCi (KM1F) 05.2005 - 07.2009 63KW/86PS K9K 724
RENAULT MEGANE II Saloon (LM0/1_) 1.5 dCi (LM0F, LM0T, LM2B) 08.2003 - 12.2010 60KW/82PS K9K 722
RENAULT MEGANE II Saloon (LM0/1_) 1.5 dCi (LM1F) 05.2005 - 12.2010 63KW/86PS K9K 724
RENAULT MODUS / GRAND MODUS (F/JP0_) 1.5 dCi (FP0D, JP0D) 09.2004 - ... 60KW/82PS K9K 750
RENAULT MODUS / GRAND MODUS (F/JP0_) 1.5 dCi (FP0E, JP0E) 12.2004 - ... 48KW/65PS K9K 768
RENAULT MODUS / GRAND MODUS (F/JP0_) 1.5 dCi (FP0F, JP0F) 12.2004 - ... 63KW/86PS K9K 766
RENAULT MODUS / GRAND MODUS (F/JP0_) 1.5 dCi (FP0G, JP0G) 12.2004 - ... 50KW/68PS K9K 768
RENAULT MODUS / GRAND MODUS (F/JP0_) 1.5 dCi 90 10.2010 - ... 65KW/88PS K9K 770
RENAULT Sandero / Stepway I (BS_) 1.5 dCi 02.2008 - 11.2011 47KW/64PS K9K 700
RENAULT Sandero / Stepway I (BS_) 1.5 dCi 02.2008 - 11.2011 49KW/67PS K9K 790
RENAULT SCÉNIC II (JM0/1_) 1.5 dCi (JM0F) 06.2003 - 05.2006 60KW/82PS K9K 722
RENAULT SCÉNIC II (JM0/1_) 1.5 dCi (JM1F) 05.2005 - 11.2008 63KW/86PS K9K 724
RENAULT Thalia I (LB_) 1.5 dCi 06.2005 - ... 47KW/64PS K9K 740
RENAULT Thalia I (LB_) 1.5 dCi 04.2002 - ... 48KW/65PS K9K 700
RENAULT Thalia I (LB_) 1.5 dCi 02.2003 - ... 50KW/68PS K9K 714
RENAULT Thalia I (LB_) 1.5 dCi 04.2004 - 11.2009 58KW/79PS K9K 706
RENAULT Thalia I (LB_) 1.5 dCi 06.2001 - 02.2009 60KW/82PS K9K 706
RENAULT THALIA II (LU1/2_) 1.5 dCi 09.2008 - ... 47KW/64PS K9K 740
RENAULT THALIA II (LU1/2_) 1.5 dCi 01.2009 - ... 48KW/65PS K9K 700
RENAULT TWINGO II (CN0_) 1.5 dCi (CN0E) 03.2007 - 09.2014 47KW/64PS K9K 740
SUZUKI JIMNY (FJ) 1.5 DDiS 4WD (SN415D) 12.2003 - ... 48KW/65PS K9K 700
SUZUKI JIMNY (FJ) 1.5 DDiS 4x4 08.2005 - ... 63KW/86PS K9K 266
DACIA DUSTER 1.5 dCi 04.2010 - 01.2018 63KW/86PS K9K 796
DACIA LOGAN (LS_) 1.5 dCi (LS0J, LS0Y) 09.2005 - ... 48KW/65PS K9K 790
DACIA LOGAN (LS_) 1.5 dCi (LS0K) 01.2006 - 12.2012 50KW/68PS K9K 792
DACIA LOGAN (LS_) 1.5 dCi (LS0W) 09.2007 - 12.2011 63KW/86PS K9K 796
DACIA LOGAN EXPRESS (FS_) 1.5 dCi (FS0K) 03.2009 - ... 50KW/68PS K9K 792
DACIA LOGAN EXPRESS (FS_) 1.5 dCi (FS0W) 03.2009 - ... 63KW/86PS K9K 796
DACIA LOGAN MCV (KS_) 1.5 dCi 04.2008 - 06.2013 48KW/65PS K9K 790
DACIA LOGAN MCV (KS_) 1.5 dCi (KS0K) 02.2007 - ... 50KW/68PS K9K 792
DACIA LOGAN MCV (KS_) 1.5 dCi (KS0W) 09.2007 - 12.2012 63KW/86PS K9K 796
DACIA LOGAN Pickup (US_) 1.5 dCi (US0K) 03.2008 - ... 50KW/68PS K9K 792
DACIA LOGAN Pickup (US_) 1.5 dCi (US0W) 03.2008 - ... 63KW/86PS K9K 796
DACIA SANDERO 1.5 dCi 11.2008 - ... 48KW/65PS K9K 790
DACIA SANDERO 1.5 dCi 11.2008 - ... 50KW/68PS K9K 792
DACIA SANDERO 1.5 dCi 11.2008 - ... 63KW/86PS K9K 796
OEM numbers
Reference number(s) OEM:
Manufacturer OE number
RENAULT 120A10282R
RENAULT 120A10538R
RENAULT 7701475075
RENAULT 7701475077
RENAULT 7701475703
The following products are also suitable for the specified OE-number:
Piston manufacturer
MAHLE ORIGINAL 022 01 00
KOLBENSCHMIDT 40190600
YENMAK 31-04164-000
NÜRAL 87-123400-40
NE 7138440000
YENMAK 31-04164-050
NE 130038002500
