Top Drum brake manufacturer
Top Brakes spare parts
  1. REXBO-car parts catalogue
  2. Drum brake car
  3. Brake drum Rear Axle, 320mm, without wheel hub, without wheel bearing, without wheel studs
HELLA Drum brake buy cheap at Rexbo
Brake drum Rear Axle, 320mm, without wheel hub, without wheel bearing, without wheel studs HELLA 4082300390551
HELLA Brake drum 8DT 355 300-631 buy popular items
Brake drum HELLA 8DT 355 300-631 buy cheap
HELLA Brake drum 8DT 355 300-631 £ 151,20 order online
Original 8DT 355 300-631 HELLA Brake drum £ 151,20 at low price

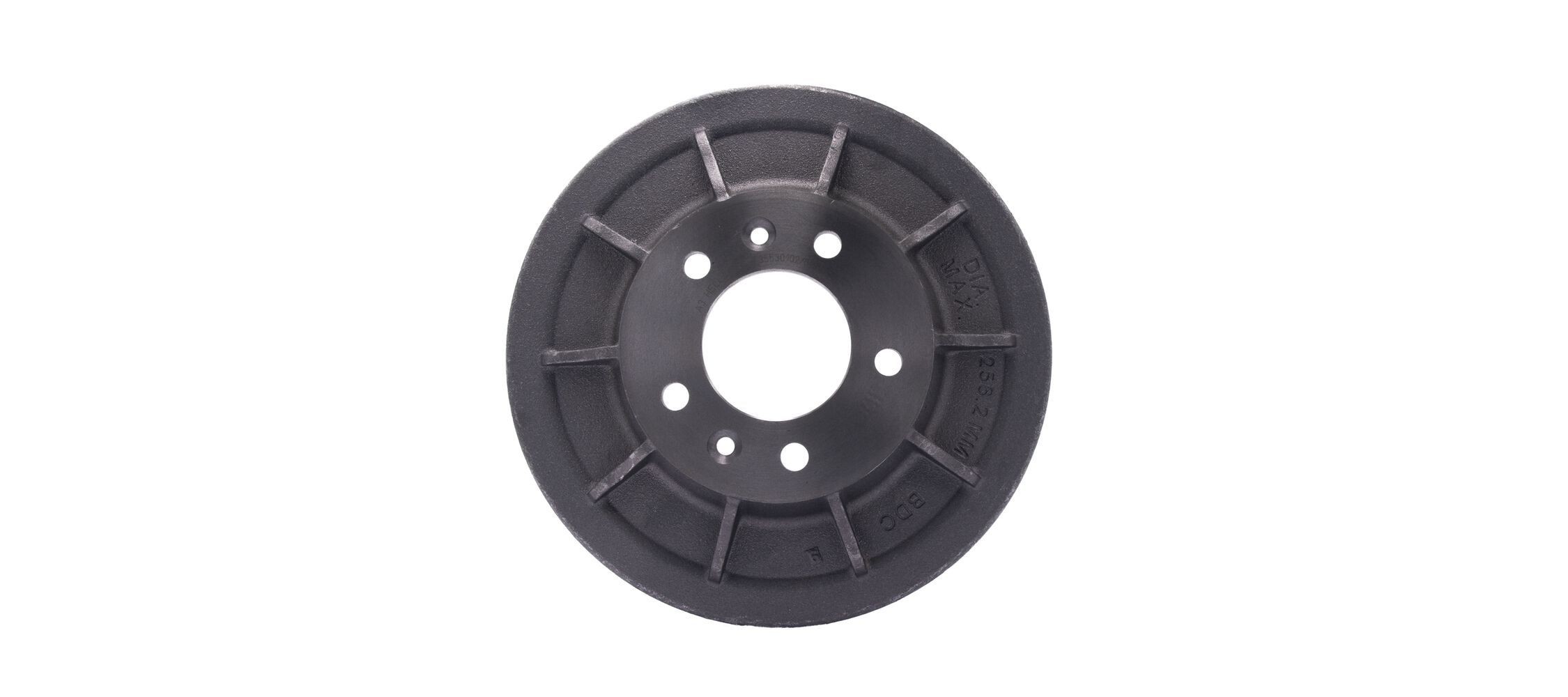

HELLA 8DT 355 300-631 Brake drum Rear Axle, 320mm, without wheel hub, without wheel bearing, without wheel studs
Article number: 8DT 355 300-631

Brake drum 4082300390551: rating
Reviews (0)
  • Fitting Position: Rear Axle
  • Outer brake drum diameter [mm]: 320
  • Inner brake drum diameter [mm]: 280
  • Inner brake drum height [mm]: 70
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 170
  • Total brake drum height [mm]: 105
  • max. brake drum reboring dimension [mm]: 282
  • Supplementary Article / Supplementary Info Info 2: without wheel hub, without wheel bearing, without wheel studs
  • Weight [kg]: 9,8
  • Centering Diameter [mm]: 132
  • Wheel Bolt Bore Diameter [mm]: 17,5
  • Assy./disassy. by qualified personnel required!:
  • Condition: New
£ 151,20
(Price per item)
incl. 20% VAT ,
delivery costs
In stock
- +
Add to basket
Facebook
Product details
  • Drum Diameter: 280,0
  • Other details
  • Manufacturer: HELLA
  • Type: Brake drum
  • EAN: 4082300390551
HELLA 4082300390551

HELLA Brake drum 4082300390551 fits the following vehicles:

Manufacturer/Model/Type Year of Construction Motor Engine code Restriction
OPEL Movano Minibus (X70) 1.9 DTI (JD) 09.2000 - 10.2001 59KW/80PS F9Q 770
OPEL Movano Minibus (X70) 1.9 DTI (JD) 10.2001 - ... 60KW/82PS F9Q 772
OPEL Movano Minibus (X70) 2.2 DTI (JD) 09.2000 - ... 66KW/90PS G9T 722
OPEL Movano Minibus (X70) 2.5 CDTI (JD) 09.2007 - ... 74KW/101PS G9U 650
OPEL Movano Minibus (X70) 2.5 CDTI (JD) 08.2006 - ... 88KW/120PS G9U 650
OPEL Movano Minibus (X70) 2.5 CDTI (JD) 08.2006 - ... 107KW/146PS G9U 650
OPEL Movano Minibus (X70) 2.5 D (JD) 07.1998 - 09.2000 59KW/80PS S8U 772
OPEL Movano Minibus (X70) 2.5 DTI (JD) 10.2001 - ... 84KW/115PS G9U 724
OPEL Movano Minibus (X70) 2.8 DTI (JD) 07.1998 - 10.2001 84KW/114PS S9W 702
OPEL Movano Minibus (X70) 3.0 DTi (JD) 10.2003 - ... 100KW/136PS ZD3 200
OPEL Movano Platform / Chassis (X70) 2.2 DTI (ED, HD, UD0, UD4) 09.2000 - ... 66KW/90PS G9T 722
OPEL Movano Platform / Chassis (X70) 2.5 CDTI (ED, HD, UD0, UD4) 08.2006 - ... 74KW/101PS G9U 650
OPEL Movano Platform / Chassis (X70) 2.5 CDTI (ED, HD, UD0, UD4) 08.2006 - ... 88KW/120PS G9U 650
OPEL Movano Platform / Chassis (X70) 2.5 CDTI (ED, HD, UD0, UD4) 08.2006 - ... 107KW/146PS G9U 650
OPEL Movano Platform / Chassis (X70) 2.5 D (ED, HD, UD0, UD4) 07.1998 - 09.2000 59KW/80PS S8U 772
OPEL Movano Platform / Chassis (X70) 2.5 DTi (ED, HD, UD0, UD4) 10.2003 - ... 73KW/99PS G9U 754
OPEL Movano Platform / Chassis (X70) 2.5 DTI (ED, HD, UD0, UD4) 10.2001 - ... 84KW/115PS G9U 724
OPEL Movano Platform / Chassis (X70) 2.8 DTI (ED, HD, UD0, UD4) 07.1998 - 10.2001 84KW/114PS S9W 702
OPEL Movano Platform / Chassis (X70) 3.0 DTI (ED, HD, UD0, UD4) 10.2003 - ... 100KW/136PS ZD3 200
OPEL Movano Van (X70) 1.9 DTI (FD) 09.2000 - 10.2001 59KW/80PS F9Q 770
OPEL Movano Van (X70) 1.9 DTI (FD) 10.2001 - ... 60KW/82PS F9Q 772
OPEL Movano Van (X70) 2.2 DTI (FD) 09.2000 - ... 66KW/90PS G9T 722
OPEL Movano Van (X70) 2.5 CDTI (FD) 10.2003 - ... 74KW/101PS G9U 650
OPEL Movano Van (X70) 2.5 CDTI (FD) 10.2003 - ... 88KW/120PS G9U 650
OPEL Movano Van (X70) 2.5 CDTI (FD) 10.2003 - ... 107KW/146PS G9U 650
OPEL Movano Van (X70) 2.5 D (FD) 01.1999 - 09.2000 59KW/80PS S8U 772
OPEL Movano Van (X70) 2.5 DTi (FD) 10.2003 - ... 73KW/99PS G9U 754
OPEL Movano Van (X70) 2.5 DTI (FD) 10.2001 - ... 84KW/115PS G9U 724
OPEL Movano Van (X70) 2.8 DTI (FD) 01.1999 - 10.2001 84KW/114PS S9W 702
OPEL Movano Van (X70) 3.0 DTI (FD) 10.2003 - ... 100KW/136PS ZD3 200
RENAULT MASTER II Box (FD) 1.9 dCi 80 11.2001 - 10.2006 60KW/82PS F9Q 772
RENAULT MASTER II Box (FD) 1.9 dTI 09.2000 - 03.2002 59KW/80PS F9Q 770
RENAULT MASTER II Box (FD) 2.2 dCI 90 09.2000 - 10.2006 66KW/90PS G9T 720
RENAULT MASTER II Box (FD) 2.5 D 07.1998 - 01.2001 59KW/80PS S8U 770
RENAULT MASTER II Box (FD) 2.5 dCi 08.2006 - 01.2010 74KW/101PS G9U 650
RENAULT MASTER II Box (FD) 2.5 dCi 08.2006 - 01.2010 88KW/120PS G9U 650
RENAULT MASTER II Box (FD) 2.5 dCi 08.2006 - 01.2010 107KW/146PS G9U 632
RENAULT MASTER II Box (FD) 2.5 dCi 100 (FD0U, FD0V) 10.2003 - 03.2010 73KW/99PS G9U 754
RENAULT MASTER II Box (FD) 2.5 dCi 120 10.2001 - 09.2007 84KW/115PS G9U 724
RENAULT MASTER II Box (FD) 2.8 D 01.2002 - 09.2004 63KW/86PS S8W 700
RENAULT MASTER II Box (FD) 2.8 dTI 07.1998 - 10.2001 84KW/114PS S9W 702
RENAULT MASTER II Box (FD) 3.0 dCi 140 (HD0S, FD0S, HD1S) 10.2003 - 10.2006 100KW/136PS ZD3 202
RENAULT MASTER II Bus (JD) 1.9 dCi 80 11.2001 - 10.2006 60KW/82PS F9Q 772
RENAULT MASTER II Bus (JD) 1.9 dTI 09.2000 - 03.2002 59KW/80PS F9Q 770
RENAULT MASTER II Bus (JD) 2.2 dCI 90 09.2000 - 09.2006 66KW/90PS G9T 720
RENAULT MASTER II Bus (JD) 2.5 D 07.1998 - 01.2001 59KW/80PS S8U 770
RENAULT MASTER II Bus (JD) 2.5 dCi 08.2006 - 01.2010 74KW/101PS G9U 650
RENAULT MASTER II Bus (JD) 2.5 dCi 08.2006 - 01.2010 88KW/120PS G9U 650
RENAULT MASTER II Bus (JD) 2.5 dCi 08.2006 - 01.2010 107KW/146PS G9U 632
RENAULT MASTER II Bus (JD) 2.5 dCi 100 (JDCV) 10.2003 - 01.2010 73KW/99PS G9U 754
RENAULT MASTER II Bus (JD) 2.5 dCi 120 10.2001 - 12.2006 84KW/115PS G9U 724
RENAULT MASTER II Bus (JD) 2.8 dTI 07.1998 - 10.2001 84KW/114PS S9W 702
RENAULT MASTER II Bus (JD) 3.0 dCi 140 (JD0T) 10.2003 - 09.2006 100KW/136PS ZD3 200
RENAULT MASTER II Platform/Chassis (ED/HD/UD) 2.2 dCI 90 09.2000 - 09.2006 66KW/90PS G9T 720
RENAULT MASTER II Platform/Chassis (ED/HD/UD) 2.5 D 07.1998 - 01.2001 59KW/80PS S8U 770
RENAULT MASTER II Platform/Chassis (ED/HD/UD) 2.5 dCi 08.2006 - 01.2010 74KW/101PS G9U 650
RENAULT MASTER II Platform/Chassis (ED/HD/UD) 2.5 dCi 08.2006 - 01.2011 88KW/120PS G9U 650
RENAULT MASTER II Platform/Chassis (ED/HD/UD) 2.5 dCi 08.2006 - 01.2010 107KW/146PS G9U 632
RENAULT MASTER II Platform/Chassis (ED/HD/UD) 2.5 dCi 100 (ED4V, ED8V) 10.2003 - 05.2010 73KW/99PS G9U 754
RENAULT MASTER II Platform/Chassis (ED/HD/UD) 2.5 dCi 120 10.2001 - 05.2010 84KW/115PS G9U 724
RENAULT MASTER II Platform/Chassis (ED/HD/UD) 2.8 dTI 07.1998 - 10.2001 84KW/114PS S9W 702
RENAULT MASTER II Platform/Chassis (ED/HD/UD) 3.0 dCi 140 (ED0S, UD0S) 10.2003 - 01.2010 100KW/136PS ZD3 200
VAUXHALL Movano Mk I (A) Van (X70) 2.5 DTI (FD) 10.2001 - 05.2010 84KW/115PS G9U 750
VAUXHALL Movano Mk1 (A) Platform / Chassis (X70) 2.2 DTI (UD0) 09.2000 - 05.2010 66KW/90PS G9T 720
VAUXHALL Movano Mk1 (A) Platform / Chassis (X70) 2.5 CDTI (ED, UD0) 08.2006 - 05.2010 88KW/120PS G9U 650
VAUXHALL Movano Mk1 (A) Platform / Chassis (X70) 2.5 CDTI (ED, UD0) 08.2006 - 05.2010 107KW/146PS G9U 650
VAUXHALL Movano Mk1 (A) Platform / Chassis (X70) 2.5 CDTI (UD0, ED) 10.2006 - 12.2010 74KW/101PS G9U 650
VAUXHALL Movano Mk1 (A) Platform / Chassis (X70) 2.5 DTI (ED, UD0) 01.2001 - 12.2006 84KW/115PS G9U 750
OEM numbers
Reference number(s) OEM:
Manufacturer OE number
HELLA 61270
OPEL 4500099
OPEL 9160399
RENAULT 7700302145
VAUXHALL 4500099
VAUXHALL 9160399
The following products are also suitable for the specified OE-number:
Brake drum manufacturer
DELPHI BF404
METZGER BT 640
ATE 24.0228-0002.1
BREMBO 14.9391.10
NK 263602
TRW DB4258
LPR 7D0383
JURID 329244J
TRISCAN 8120 10213
BOSCH 0 986 477 169
TEXTAR 94027000
A.B.S. 2710-S
KAMOKA 104030
AUTOMEGA 30770003020145
AUTOMEGA 120046710
DT Spare Parts 6.60024
HELLA 8DT 355 300-631
MINTEX MBD307
STARK SKBDM-0800220
RIDEX 123B0221
FERODO FDR329818
SAMKO S70383
JAPANPARTS TA-0414
MAXGEAR 19-3680
JAPANPARTS TA-0414C
ASHIKA 56-00-0414C
JAPKO 560414C
FEBI BILSTEIN 194801
MIKODA 9410
A.B.S. 31873
ROADHOUSE 7106.00
