MAHLE ORIGINAL Piston buy cheap at Rexbo

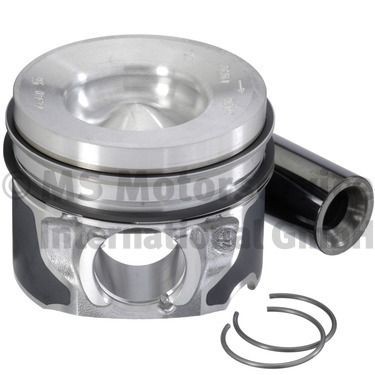

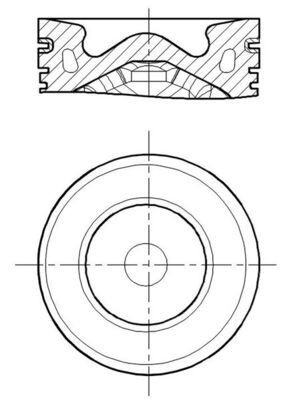

Piston with piston ring carrier, with cooling duct MAHLE ORIGINAL 2503001477980

MAHLE ORIGINAL 040 06 02 Piston with piston ring carrier, with cooling duct
Article number: 040 06 02

Piston 2503001477980: rating
Reviews (0)
  • Cylinder Bore [mm]: 76,0
  • Length [mm]: 65,2
  • Compression Height [mm]: 41,7
  • Bolt Length [mm]: 61
  • Bolt Head Diameter [mm]: 26
  • Recess Depth 1 [mm]: 13,29
  • Recess Diameter [mm]: 41,7
  • Valve Pocket Depth 1 [mm]: 1,16
  • Machined: with cut-out for oil jet
  • Surface: Coated
  • Supplementary Article / Supplementary Info Info 2: with piston ring carrier, with cooling duct
  • Top Land Height [mm]: 7,54
  • Connecting Rod Design: Trapezoidal Connecting Rod
  • Production Number: 75 L 93
  • Component Number: 1. T 3.0 CrK, 2. NM 1.95 P, 3. DSF2.5 Cr P
  • Piston Clearance [mm]: 0,06
  • Packaging height [cm]: 12,80
  • Net Weight [g]: 408
  • Packaging length [cm]: 9,5
  • Packaging width [cm]: 9,50
  • Condition: New
£ 150,73
incl. 20% VAT ,
delivery costs
Сurrently out of stock
- +
Add to basket
Facebook
Product details
  • Recess Depth 1 [mm]: 13,29
  • Valve Pocket Depth 1 [mm]: 1,16
  • Surface: Coated
  • Machined: with cut-out for oil jet
  • Supplementary Article/Supplementary Info: with piston rings
  • Other details
  • Manufacturer: MAHLE ORIGINAL
  • Type: Piston
  • EAN: 2503001477980
MAHLE ORIGINAL 2503001477980

MAHLE ORIGINAL Piston 2503001477980 fits the following vehicles:

Manufacturer/Model/Type Year of Construction Motor Engine code Restriction
CITROËN BERLINGO (B9) 1.6 HDi 04.2008 - ... 66KW/90PS 9HX (DV6ATED4)
CITROËN BERLINGO (B9) 1.6 HDi 04.2008 - ... 80KW/109PS 9HZ (DV6TED4)
CITROËN Berlingo / Berlingo First (MF, GJK, GFK) 1.6 HDI 07.2005 - 05.2008 66KW/90PS 9HX (DV6ATED4)
CITROËN Berlingo / Berlingo First Van (M_) 1.6 HDI 07.2005 - 12.2011 66KW/90PS 9HX (DV6ATED4)
CITROËN BERLINGO Box (B9) 1.6 HDi 04.2008 - ... 80KW/109PS 9HZ (DV6TED4)
CITROËN BERLINGO Box (B9) 1.6 HDi 16V 04.2008 - ... 66KW/90PS 9HX (DV6AUTED4)
CITROËN BERLINGO Platform/Chassis (B9) 1.6 HDi 16V 04.2008 - ... 66KW/90PS 9HX (DV6ATED4)
CITROËN C2 Hatchback (JM) 1.6 HDi 09.2005 - 12.2009 80KW/109PS 9HZ (DV6TED4)
CITROËN C3 I Hatchback (FC_, FN_) 1.6 16V HDi 10.2005 - 12.2009 66KW/90PS 9HX (DV6ATED4)
CITROËN C3 I Hatchback (FC_, FN_) 1.6 16V HDi 09.2005 - 12.2009 80KW/109PS 9HZ (DV6TED4)
CITROËN C3 II (SC_) 1.6 HDi 11.2009 - 09.2016 66KW/90PS 9HX (DV6ATED4)
CITROËN C3 Picasso 1.6 HDi 02.2009 - 03.2015 66KW/90PS 9HX (DV6ATED4)
CITROËN C3 Picasso 1.6 HDi 02.2009 - 12.2010 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 Coupe (LA_) 1.6 HDi 11.2004 - 07.2011 66KW/90PS 9HX (DV6ATED4)
CITROËN C4 Coupe (LA_) 1.6 HDi 11.2004 - 07.2011 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 Grand Picasso I (UA_) 1.6 HDi 10.2006 - 06.2011 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 I (LC_) 1.6 HDi 11.2004 - 07.2011 66KW/90PS 9HX (DV6ATED4)
CITROËN C4 I (LC_) 1.6 HDi 11.2004 - 07.2011 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 I (LC_) 1.6 HDi 07.2006 - 07.2011 85KW/116PS 9HY (DV6TED4)
CITROËN C4 Picasso I (UD_) 1.6 HDi 02.2007 - 08.2013 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 Saloon L 1.6 HDi 07.2006 - 07.2011 80KW/109PS 9HZ (DV6TED4)
CITROËN C4 Saloon L 1.6 HDi DOC 07.2006 - 08.2013 85KW/116PS 9HY (DV6TED4)
CITROËN C5 Estate Van (DE_, RE_) 1.6 HDi 09.2004 - 01.2008 80KW/109PS 9HZ (DV6TED4)
CITROËN C5 II (RC_) 1.6 HDi (RC8HZB) 09.2004 - 01.2008 80KW/109PS 9HZ (DV6TED4)
CITROËN C5 II Break (RE_) 1.6 HDi (RE9HZC, RE9HYB) 09.2004 - 01.2008 80KW/109PS 9HZ (DV6TED4)
CITROËN C5 III (RD_) 1.6 HDi 02.2008 - 10.2010 80KW/109PS 9HZ (DV6TED4)
CITROËN C5 III Estate (RW_) 1.6 HDi 02.2008 - 10.2010 80KW/109PS 9HZ (DV6TED4)
CITROËN JUMPY Box 1.6 HDi 16V 01.2007 - 03.2016 66KW/90PS 9HU (DV6UTED4)
CITROËN Jumpy MPV (VF7) 1.6 HDi 16V 01.2007 - 03.2016 66KW/90PS 9HU (DV6UTED4)
CITROËN JUMPY Platform/Chassis 1.6 HDi 16V 06.2007 - 03.2016 66KW/90PS 9HU (DV6UTED4)
CITROËN XSARA PICASSO (N68) 1.6 HDi 09.2005 - 12.2011 66KW/90PS 9HX (DV6ATED4)
CITROËN XSARA PICASSO (N68) 1.6 HDi 05.2004 - 12.2011 80KW/109PS 9HZ (DV6TED4)
FIAT Scudo (270_, 272_) 1.6 D Multijet 01.2007 - 03.2016 66KW/90PS 9HU
FIAT Scudo Platform / Chassis (270_, 272_) 1.6 D Multijet 01.2007 - 03.2016 66KW/90PS 9HU
FIAT Scudo Van (270_, 272_) 1.6 D Multijet 01.2007 - 03.2016 66KW/90PS 9HU
FORD C-MAX (DM2) 1.6 TDCi 02.2007 - 09.2010 66KW/90PS GPDA
FORD C-MAX (DM2) 1.6 TDCi 02.2007 - 09.2010 80KW/109PS G8DA
FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.6 TDCi 11.2004 - 06.2008 66KW/90PS HHJA
FORD Fiesta Mk5 Van 1.6 TDCi 04.2007 - 09.2009 66KW/90PS HHJA
FORD Fiesta Mk6 Hatchback (JA8, JR8) 1.6 TDCi 06.2008 - 12.2012 55KW/75PS HHJF
FORD Fiesta Mk6 Hatchback (JA8, JR8) 1.6 TDCi 06.2008 - 12.2012 66KW/90PS HHJC
FORD Fiesta Mk6 Saloon 1.6 TDCi 10.2010 - 10.2012 66KW/90PS HHJC
FORD Fiesta Mk6 Van 1.6 TDCi 01.2009 - 04.2017 66KW/90PS HHJC
FORD Focus C-Max (DM2) 1.6 TDCi 02.2005 - 03.2007 66KW/90PS HHDA
FORD Focus C-Max (DM2) 1.6 TDCi 10.2003 - 03.2007 80KW/109PS G8DA
FORD Focus II Estate (DA_, FFS, DS) 1.6 TDCi 07.2004 - 09.2012 66KW/90PS GPDB
FORD Focus II Estate (DA_, FFS, DS) 1.6 TDCi 07.2004 - 09.2012 80KW/109PS G8DA
FORD Focus II Estate (DA_, FFS, DS) 1.6 TDCi 12.2007 - 09.2012 81KW/110PS G8DA
FORD Focus II Hatchback (DA_, HCP, DP) 1.6 TDCi 01.2005 - 09.2012 66KW/90PS GPDB
FORD Focus II Hatchback (DA_, HCP, DP) 1.6 TDCi 07.2004 - 09.2012 80KW/109PS G8DA
FORD Focus II Saloon (DB_, FCH, DH) 1.6 TDCi 04.2005 - 09.2012 66KW/90PS GPDB
FORD Focus II Saloon (DB_, FCH, DH) 1.6 TDCi 04.2005 - 09.2012 80KW/109PS G8DA
FORD Focus Mk2 Box Body / Estate 1.6 TDCi 09.2005 - 07.2011 66KW/90PS HHDA
FORD Focus Mk2 Box Body / Estate 1.6 TDCi 07.2004 - 07.2011 80KW/109PS G8DA
FORD FUSION (JU_) 1.6 TDCi 11.2004 - 12.2012 66KW/90PS HHJA
MAZDA 3 (BK) 1.6 DI Turbo 06.2004 - 06.2009 80KW/109PS Y601
MAZDA 3 (BL) 1.6 MZ-CD (BL14) 12.2008 - 05.2013 80KW/109PS Y642
MAZDA 3 Saloon (BK) 1.6 DI Turbo (BK12Y) 06.2004 - 06.2009 80KW/109PS Y601
MAZDA 3 Saloon (BL) 1.6 MZR CD (BL12) 12.2008 - 05.2013 80KW/109PS Y642
PEUGEOT 1007 (KM_) 1.6 HDi 06.2007 - ... 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 206 CC (2D) 1.6 HDi 04.2005 - 02.2007 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 206 Hatchback (2A/C) 1.6 HDi 05.2004 - 02.2007 80KW/109PS 9HY (DV6TED4)
PEUGEOT 206 SW (2E/K) 1.6 HDi 05.2004 - ... 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 207 (WA_, WC_) 1.6 HDi 02.2006 - 10.2013 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 207 (WA_, WC_) 1.6 HDi 02.2006 - 10.2013 80KW/109PS 9HY (DV6TED4)
PEUGEOT 207 CC (WD_) 1.6 HDi 02.2007 - 01.2015 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 207 SW (WK_) 1.6 HDi 06.2007 - 12.2012 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 207 SW (WK_) 1.6 HDi 06.2007 - 12.2012 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 207 SW Box Body / Estate (WK_) 1.6 HDi 08.2007 - 12.2012 66KW/90PS 9HX (DV6ATED4)
PEUGEOT 207 SW Box Body / Estate (WK_) 1.6 HDi 08.2007 - 12.2012 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 3008 (0U_) 1.6 HDi 06.2009 - 08.2016 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 3008 (T8) HDi (0U9HZ8, 0U9HZT) 06.2009 - 08.2016 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 307 (3A/C) 1.6 HDi 04.2005 - 03.2009 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 307 (3A/C) 1.6 HDi 02.2004 - 03.2009 80KW/109PS 9HY (DV6TED4)
PEUGEOT 307 Break (3E) 1.6 HDi 04.2005 - 04.2008 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 307 Break (3E) 1.6 HDi 02.2004 - 04.2008 80KW/109PS 9HY (DV6TED4)
PEUGEOT 307 SW (3H) 1.6 HDI 04.2005 - 04.2008 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 307 SW (3H) 1.6 HDI 11.2003 - 12.2007 80KW/109PS 9HY (DV6TED4)
PEUGEOT 307 SW Estate Van (3E_, 3H_) 1.6 HDi 04.2006 - 10.2008 66KW/90PS 9HX (DV6ATED4)
PEUGEOT 308 CC (4B_) 1.6 HDi 02.2009 - 05.2012 82KW/111PS 9HZ (DV6TED4)
PEUGEOT 308 I Hatchback (4A_, 4C_) 1.6 HDi 09.2007 - 10.2014 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 308 I Hatchback (4A_, 4C_) 1.6 HDi 09.2007 - 10.2014 80KW/109PS 9HY (DV6TED4)
PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi 09.2007 - 10.2014 66KW/90PS 9HV (DV6TED4BU)
PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi 09.2007 - 10.2014 80KW/109PS 9HY (DV6TED4)
PEUGEOT 308 SW I Box Body / Estate (4E_) 1.6 HDi 01.2008 - 12.2011 66KW/90PS 9HX (DV6ATED4)
PEUGEOT 308 SW I Box Body / Estate (4E_) 1.6 HDi 01.2008 - 12.2012 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 407 (6D_) 1.6 HDi (6D9HZC, 6D9HYC) 05.2004 - 12.2010 80KW/109PS 9HY (DV6TED4)
PEUGEOT 407 SW (6E_) 1.6 HDi 05.2004 - 12.2010 80KW/109PS 9HY (DV6TED4)
PEUGEOT 407 SW Box Body / Estate (6E_) 1.6 HDi 08.2004 - 12.2010 80KW/109PS 9HZ (DV6TED4)
PEUGEOT 408 1.6 HDi 04.2011 - ... 80KW/109PS 9HY (DV6TED4)
PEUGEOT 5008 (0U_, 0E_) 1.6 HDi 09.2009 - 03.2017 80KW/110PS 9HZ (DV6TED4)
PEUGEOT EXPERT Box (VF3A_, VF3U_, VF3X_) 1.6 HDi 16V 01.2007 - ... 66KW/90PS 9HU (DV6UTED4)
PEUGEOT EXPERT Platform/Chassis 1.6 HDi 16V 01.2007 - ... 66KW/90PS 9HU (DV6UTED4)
PEUGEOT Expert Tepee (VF3X_) 1.6 HDi 16V 01.2007 - 03.2016 66KW/90PS 9HU (DV6UTED4)
PEUGEOT PARTNER Box 1.6 HDi 04.2008 - ... 80KW/109PS 9HZ (DV6TED4)
PEUGEOT PARTNER Box 1.6 HDi 16V 04.2008 - ... 66KW/90PS 9HS (DV6TED4BU)
PEUGEOT PARTNER Box 1.6 HDi 16V 04.2010 - ... 68KW/92PS 9HX (DV6ATED4)
PEUGEOT PARTNER Box 1.6 HDi 16V 4x4 04.2012 - ... 66KW/90PS 9HX (DV6ATED4)
PEUGEOT PARTNER Box (5) 1.6 HDi 08.2005 - 12.2015 66KW/90PS 9HX (DV6ATED4)
PEUGEOT PARTNER Combispace (5F) 1.6 HDi 08.2005 - 12.2015 66KW/90PS 9HX (DV6ATED4)
PEUGEOT Partner Origin Combispace (G_) 1.6 HDi 09.2011 - 12.2013 66KW/90PS 9HX (DV6ATED4)
PEUGEOT Partner Origin Van (G_) 1.6 HDi 08.2008 - 12.2015 66KW/90PS 9HX (DV6ATED4)
PEUGEOT PARTNER Platform/Chassis 1.6 HDi 16V 01.2009 - ... 66KW/90PS 9HS (DV6TED4BU)
PEUGEOT PARTNER Tepee 1.6 HDi 04.2008 - ... 80KW/109PS 9HZ (DV6TED4)
PEUGEOT PARTNER Tepee 1.6 HDi 16V 04.2008 - ... 66KW/90PS 9HV (DV6TED4B)
SUZUKI SX4 (EY, GY) 1.6 DDIS (RW 416D) 04.2007 - ... 66KW/90PS 9HX
VOLVO C30 (533) 1.6 D 10.2006 - 12.2012 80KW/109PS D 4164 T
VOLVO S40 II (544) 1.6 D 01.2005 - 12.2012 81KW/110PS D 4164 T
VOLVO S80 II (124) 1.6 D DRIVe 01.2010 - 12.2011 80KW/109PS D 4164 T
VOLVO V50 (545) 1.6 D 03.2005 - 12.2012 80KW/109PS D 4164 T
VOLVO V50 (545) 1.6 D 01.2005 - 12.2011 81KW/110PS D 4164 T
VOLVO V70 III (135) 1.6 D 07.2009 - 12.2011 80KW/109PS D 4164 T
SANTANA 300 / 350 Off-Road 1.6 D 4x4 09.1998 - ... 66KW/90PS DV6ATED4
SANTANA 300 / 350 Off-Road 1.6 HDi 4x4 07.2006 - 02.2011 66KW/90PS DV6ATED4
MINI Clubman (R55) Cooper D 10.2007 - 02.2010 80KW/109PS 9HZ (DV6TED4)
MINI Hatchback (R56) Cooper D 11.2006 - 09.2010 80KW/109PS 9HZ (DV6TED4)
MINI Hatchback (R56) One D 06.2009 - 07.2010 66KW/90PS 9HZ (DV6TED4)
