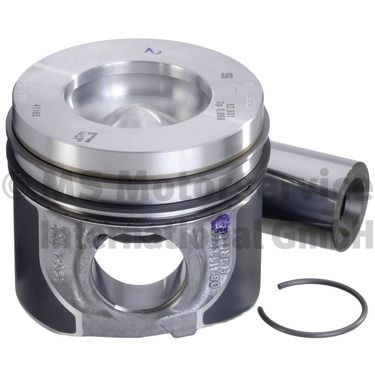

Piston for cylinder 3, for cylinder 4, for cylinder 5, with piston ring carrier, without cooling duct MAHLE ORIGINAL 2503001467592

MAHLE ORIGINAL 030 59 12 Piston for cylinder 3, for cylinder 4, for cylinder 5, with piston ring carrier, without cooling duct
Article number: 030 59 12

Piston 2503001467592: rating
Reviews (0)
  • Cylinder Bore [mm]: 81,51
  • Length [mm]: 69,5
  • Compression Height [mm]: 45,5
  • Bolt Length [mm]: 68,0
  • Bolt Head Diameter [mm]: 26,0
  • Recess Depth 1 [mm]: 17,2
  • Recess Diameter [mm]: 39,6
  • Valve Pocket Depth 1 [mm]: 1,35
  • Machined: with cut-out for oil jet
  • Surface: Coated
  • Supplementary Article / Supplementary Info Info 2: with piston ring carrier, without cooling duct
  • Top Land Height [mm]: 8,75
  • Fitting Position: for cylinder 3, for cylinder 4, for cylinder 5
  • Production Number: 81 L 51
  • Component Number: 1. R2.5 IW CrK, 2. M 2.0 IFU P, 3. DSF 3.0 Cr
  • Piston Clearance [mm]: 0,05
  • Packaging height [cm]: 12,80
  • Net Weight [g]: 850
  • Packaging length [cm]: 9,5
  • Packaging width [cm]: 9,50
  • Condition: New
£ 95,92
incl. 20% VAT ,
delivery costs
In stock
- +
Add to basket
Facebook
Product details
  • Bolt Ø [mm]: 26
  • Recess Depth 1 [mm]: 17,2
  • Valve Pocket Depth 1 [mm]: 1,35
  • Surface: Coated
  • Machined: with cut-out for oil jet
  • Fitting Position: to cylinder 3
  • Supplementary Article/Supplementary Info: with piston rings
  • Other details
  • Manufacturer: MAHLE ORIGINAL
  • Type: Piston
  • EAN: 2503001467592
MAHLE ORIGINAL 2503001467592

MAHLE ORIGINAL Piston 2503001467592 fits the following vehicles:

Manufacturer/Model/Type Year of Construction Motor Engine code Restriction
VW California Westfalia T4 Minibus (7DJ, 7DK, 70J) 2.5 TDI 05.1998 - 04.2003 65KW/88PS AJT
VW California Westfalia T4 Minibus (7DJ, 7DK, 70J) 2.5 TDI 05.1998 - 04.2002 75KW/102PS AYC
VW California Westfalia T4 Minibus (7DJ, 7DK, 70J) 2.5 TDI 07.1999 - 04.2003 111KW/151PS AXG
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 SDI 07.1996 - 07.2006 55KW/75PS AGX
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI 05.2001 - 07.2006 61KW/83PS BBE
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI 05.1999 - 07.2006 66KW/90PS APA
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI 05.2001 - 07.2006 70KW/95PS BBF
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI 05.1996 - 08.1999 75KW/102PS AHD
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI 05.1999 - 07.2006 80KW/109PS ANJ
VW LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 SDI 09.1996 - 07.2006 55KW/75PS AGX
VW LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI 05.2001 - 07.2006 61KW/83PS BBE
VW LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI 05.1999 - 07.2006 66KW/90PS APA
VW LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI 05.2001 - 07.2006 70KW/95PS BBF
VW LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI 06.1996 - 08.1999 75KW/102PS AHD
VW LT 28-46 II Platform / Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI 05.1999 - 07.2006 80KW/109PS ANJ
VW LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 SDI 09.1996 - 07.2006 55KW/75PS AGX
VW LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI 05.2001 - 07.2006 61KW/83PS BBE
VW LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI 05.1999 - 07.2006 66KW/90PS APA
VW LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI 05.2001 - 07.2006 70KW/95PS BBF
VW LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI 05.1996 - 08.1999 75KW/102PS AHD
VW LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI 05.1999 - 07.2006 80KW/109PS ANJ
VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI 05.1998 - 04.2003 65KW/88PS AJT
VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI 09.1995 - 04.2003 75KW/102PS AYC
VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI 05.1998 - 04.2003 111KW/151PS AXG
VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI Syncro 01.1996 - 04.2003 75KW/102PS ACV
VW Transporter IV Platform / Chassis (70E, 70L, 70M, 7DE, 7DL) 2.5 TDI 05.1998 - 04.2003 65KW/88PS AJT
VW Transporter IV Platform / Chassis (70E, 70L, 70M, 7DE, 7DL) 2.5 TDI 09.1995 - 04.2003 75KW/102PS AYC
VW Transporter IV Platform / Chassis (70E, 70L, 70M, 7DE, 7DL) 2.5 TDI Syncro 05.1998 - 04.2003 75KW/102PS ACV
VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 TDI 12.1998 - 04.2003 65KW/88PS AJT
VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 TDI 09.1995 - 04.2003 75KW/102PS AYC
VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 TDI 09.2000 - 04.2003 111KW/151PS AXG
VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 TDI Syncro 09.1995 - 04.2003 75KW/102PS ACV
