MAHLE ORIGINAL from 013 PI 00137 002: Your selected vehicle
Back to the range of Piston
LANCIA (120 KW / 163 PS) MAHLE ORIGINAL 013 PI 00137 002
THESIS (841AX) 2.4 JTD (841.AXE1B0, 841.AXH110) MAHLE ORIGINAL 4057635168151
LANCIA THESIS (841AX)
2.4 JTD (841.AXE1B0, 841.AXH110) (120 kW / 163 hp)
Select vehicle
Brand
Brand
1
Model
Model
2
Motor type
Motor type
3
Car parts catalog:
LANCIA THESIS (841AX) 2.4 JTD (841.AXE1B0, 841.AXH110)
  • Air conditioning
  • Bearings
  • Belts, chains, rollers
  • Body
  • Brakes
  • Clutch
  • Damping
  • Drive shaft and cv joint
  • Electrics
  • Engine
  • Engine cooling system
  • Exhaust
  • Filters
  • Fuel supply system
  • Gaskets and sealing rings
  • Gearbox
  • Heating and ventilation
  • Ignition and preheating
  • Interior
  • Lighting
  • Oils and fluids
  • Pipes and hoses
  • Propshafts and differentials
  • Repair kits
  • Sensors, relays, control units
  • Steering
  • Suspension
  • Towbar / parts
  • Wiper and washer system
Top Piston manufacturer
Top Engine spare parts
  1. REXBO-car parts catalogue
  2. Piston car
  3. Piston with piston ring carrier, with cooling duct
MAHLE ORIGINAL Piston buy cheap at Rexbo
Piston with piston ring carrier, with cooling duct MAHLE ORIGINAL 4057635168151

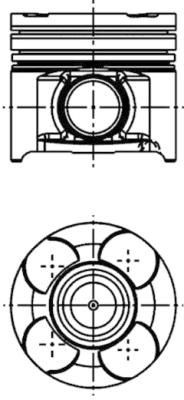

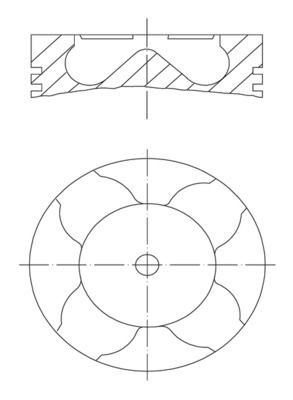

MAHLE ORIGINAL 013 PI 00137 002 Piston with piston ring carrier, with cooling duct
Article number: 013 PI 00137 002

Piston 4057635168151: rating
Reviews (0)
  • Cylinder Bore [mm]: 86,50
  • Length [mm]: 74,8
  • Compression Height [mm]: 48,42
  • Bolt Length [mm]: 66,85
  • Bolt Head Diameter [mm]: 30
  • Recess Depth 1 [mm]: 16,2
  • Recess Diameter [mm]: 49
  • Machined: with cut-out for oil jet
  • Surface: Coated
  • Supplementary Article / Supplementary Info Info 2: with piston ring carrier, with cooling duct
  • Top Land Height [mm]: 8,6
  • Production Number: 86 L 164
  • Component Number: 1. R 2 IF CrK, 1. R2.0 IF CrK, 2. NM 2 P, 2. NM 2.0 P, 3. DSF 2 N, 3. DSF 2.0 N
  • Piston Clearance [mm]: 0,055
  • Packaging width [cm]: 9,50
  • Condition: New
£ 125,73
incl. 20% VAT ,
delivery costs
In stock
- +
Add to basket
Facebook
Product details
  • Mechanisch bewerkt: 034
  • Komdiameter [mm]: 49
  • Komdiepte 1 [mm]: 16,2
  • Bout-Ø [mm]: 30
  • Boutlengte [mm]: 66,85
  • Compressiehoogte [mm]: 48,42
  • Lengte [mm]: 75
  • Cilinderboring [mm]: 86,50
  • Other details
  • Manufacturer: MAHLE ORIGINAL
  • Type: Piston
  • EAN: 4057635168151
MAHLE ORIGINAL 4057635168151

MAHLE ORIGINAL Piston 4057635168151 fits the following vehicles:

Manufacturer/Model/Type Year of Construction Motor Engine code Restriction
CITROËN JUMPER Box 2.2 HDi 07.2011 - 12.2020 81KW/110PS 4HG (P22DTE)
CITROËN JUMPER Box 2.2 HDi 07.2011 - ... 96KW/130PS 4HH (P22DTE)
CITROËN JUMPER Box 2.2 HDi 07.2011 - ... 110KW/150PS 4HJ (P22DTE)
CITROËN JUMPER Box 2.2 HDi 4x4 01.2012 - 05.2016 96KW/130PS 4HH (P22DTE)
CITROËN JUMPER Bus 2.2 HDi 07.2011 - 12.2020 81KW/110PS 4HG (P22DTE)
CITROËN JUMPER Bus 2.2 HDi 07.2011 - ... 96KW/130PS 4HH (P22DTE)
CITROËN JUMPER Bus 2.2 HDi 07.2011 - ... 110KW/150PS 4HJ (P22DTE)
CITROËN JUMPER Platform/Chassis 2.2 HDi 07.2011 - 12.2020 81KW/110PS 4HG (P22DTE)
CITROËN JUMPER Platform/Chassis 2.2 HDi 07.2011 - ... 96KW/130PS 4HH (P22DTE)
CITROËN JUMPER Platform/Chassis 2.2 HDi 07.2011 - ... 110KW/150PS 4HJ (P22DTE)
FORD RANGER (TKE) 2.2 TDCi 04.2011 - ... 88KW/120PS ENPF
FORD RANGER (TKE) 2.2 TDCi 04.2011 - ... 92KW/125PS ENQW
FORD RANGER (TKE) 2.2 TDCi 11.2011 - ... 110KW/150PS GBVAJQJ
FORD RANGER (TKE) 2.2 TDCi 05.2015 - ... 118KW/160PS GBVAJQJ
FORD RANGER (TKE) 2.2 TDCi 4x4 04.2011 - ... 92KW/125PS ENQW
FORD RANGER (TKE) 2.2 TDCi 4x4 04.2011 - ... 110KW/150PS GBVAJQJ
FORD RANGER (TKE) 2.2 TDCi 4x4 05.2015 - ... 118KW/160PS GBVAJQJ
FORD Tourneo Custom V362 Minibus (F3) 2.2 TDCi 04.2012 - 12.2015 92KW/125PS CYFF
FORD Tourneo Custom V362 Minibus (F3) 2.2 TDCi 04.2012 - 12.2015 114KW/155PS CVFF
FORD Transit Custom V362 Minibus (F3) 2.2 TDCi 04.2012 - 12.2015 92KW/125PS CYFF
FORD Transit Custom V362 Minibus (F3) 2.2 TDCi 04.2012 - 12.2015 114KW/155PS CVFF
FORD Transit Custom V362 Van (FY, FZ) 2.2 TDCi 09.2012 - 12.2023 92KW/125PS CYFF
FORD Transit Custom V362 Van (FY, FZ) 2.2 TDCi 09.2012 - 12.2015 114KW/155PS CVFF
FORD Transit Mk6 Box (V347, V348, FA) 2.2 TDCi 10.2011 - 08.2014 74KW/100PS DRFA
FORD Transit Mk6 Box (V347, V348, FA) 2.2 TDCi 10.2011 - 08.2014 92KW/125PS CYFD
FORD Transit Mk6 Box (V347, V348, FA) 2.2 TDCi RWD 10.2011 - 08.2014 114KW/155PS CVRA
FORD Transit Mk6 Bus (V347, V348, FD, FB, FS, FZ, FC) 2.2 TDCi 10.2011 - 08.2014 74KW/100PS DRFA
FORD Transit Mk6 Bus (V347, V348, FD, FB, FS, FZ, FC) 2.2 TDCi 10.2011 - 08.2014 92KW/125PS CYFD
FORD Transit Mk6 Bus (V347, V348, FD, FB, FS, FZ, FC) 2.2 TDCi RWD 10.2011 - 08.2014 114KW/155PS CVRC
FORD Transit Mk6 Platform / Chassis (V347, V348, FM, FN, FF) 2.2 TDCi 10.2011 - 08.2014 74KW/100PS DRFA
FORD Transit Mk6 Platform / Chassis (V347, V348, FM, FN, FF) 2.2 TDCi 10.2011 - 08.2014 92KW/125PS CYFD
FORD Transit Mk6 Platform / Chassis (V347, V348, FM, FN, FF) 2.2 TDCi RWD 10.2011 - 08.2014 114KW/155PS CVRB
FORD Transit Mk7 Minibus (V363, FAD, FBD) 2.2 TDCi 12.2014 - 12.2018 114KW/155PS CVF5
FORD Transit Mk7 Minibus (V363, FAD, FBD) 2.2 TDCi All-wheel Drive 08.2015 - 12.2018 114KW/155PS CVR5
FORD Transit Mk7 Minibus (V363, FAD, FBD) 2.2 TDCi RWD 08.2013 - 12.2018 114KW/155PS CVR5
FORD Transit Mk7 Platform / Chassis (V363, FED, FFD) 2.2 TDCi 08.2013 - 12.2018 114KW/155PS CVF5
FORD Transit Mk7 Platform / Chassis (V363, FED, FFD) 2.2 TDCi 4x4 08.2013 - 12.2018 114KW/155PS CVR5
FORD Transit Mk7 Platform / Chassis (V363, FED, FFD) 2.2 TDCi RWD 08.2013 - ... 114KW/155PS CVR5
FORD Transit Mk7 Van (V363, FCD, FDD) 2.2 TDCi 08.2013 - 12.2018 114KW/155PS CVF5
FORD Transit Mk7 Van (V363, FCD, FDD) 2.2 TDCi 4x4 08.2015 - 12.2018 114KW/155PS CVR5
FORD Transit Mk7 Van (V363, FCD, FDD) 2.2 TDCi RWD 08.2013 - 12.2018 114KW/155PS CVR5
FORD TRANSIT TOURNEO 2.2 10.2011 - 08.2014 92KW/125PS CYFD
PEUGEOT BOXER Box 2.2 HDi 03.2011 - 12.2020 81KW/110PS 4HG (P22DTE)
PEUGEOT BOXER Box 2.2 HDi 03.2011 - ... 96KW/131PS 4HH (P22DTE)
PEUGEOT BOXER Box 2.2 HDi 03.2011 - ... 110KW/150PS 4HJ (P22DTE)
PEUGEOT BOXER Box 2.2 HDi 4x4 03.2011 - ... 96KW/131PS 4HH (P22DTE)
PEUGEOT BOXER Box 2.2 HDi 4x4 03.2011 - ... 110KW/150PS 4HJ (P22DTE)
PEUGEOT BOXER Bus 2.2 HDi 03.2011 - 12.2020 81KW/110PS 4HG (P22DTE)
PEUGEOT BOXER Bus 2.2 HDi 03.2011 - ... 96KW/131PS 4HH (P22DTE)
PEUGEOT BOXER Bus 2.2 HDi 03.2011 - ... 110KW/150PS 4HJ (P22DTE)
PEUGEOT BOXER Platform/Chassis 2.2 HDi 03.2011 - 12.2020 81KW/110PS 4HG (P22DTE)
PEUGEOT BOXER Platform/Chassis 2.2 HDi 03.2011 - ... 96KW/131PS 4HH (P22DTE)
PEUGEOT BOXER Platform/Chassis 2.2 HDi 03.2011 - ... 96KW/130PS 4HH (P22DTE)
PEUGEOT BOXER Platform/Chassis 2.2 HDi 03.2011 - ... 110KW/150PS 4HJ (P22DTE)
PEUGEOT BOXER Platform/Chassis 2.2 HDi 03.2011 - ... 110KW/150PS 4HJ (P22DTE)
